HB818 . HB828 . HB859
Descriptions:

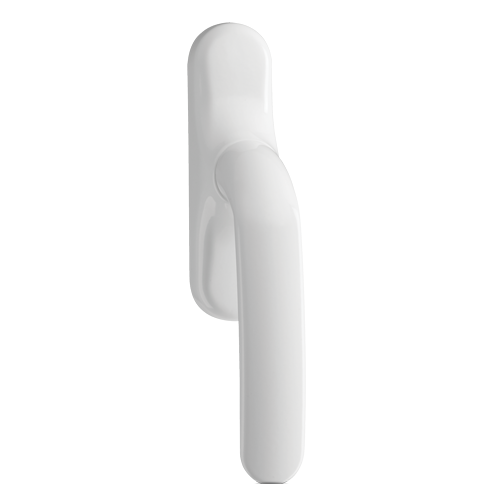

The HB 818 / 828 fork drive espagnolette handles are designed for use with both one-way and two-way espagnolette rods.Suitable for small window profiles, these handles work with the espagnolette locking mechanism and are weatherproof.

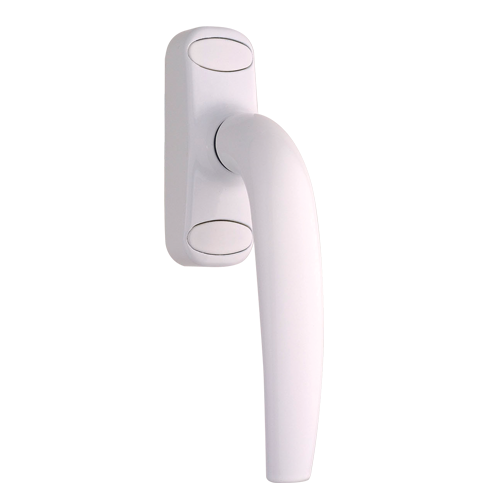

The HB 859 espagnolette handle offers different lengths of U-type and T-type fork.
Suitable for medium to large window profiles, this handle is durable and weatherproof.
Specifications:
Model | Finishing | Steel Spindle | Detailed Specs | Packing | |
---|---|---|---|---|---|
Type | Length (mm) | ||||
HB 818 |
|
U -type
T -type |
One Size |
Backplate Size:
27.5(W) X 88(L) mm |
1 pcs/box 60 boxes/carton |
HB 828 | One Size | Backplate Size: 24.0(W) X 74.4(L) mm |
|||
HB 859 | 23 30 48 58 |
Backplate Size: 28.8(W) X 107 (L) mm |
