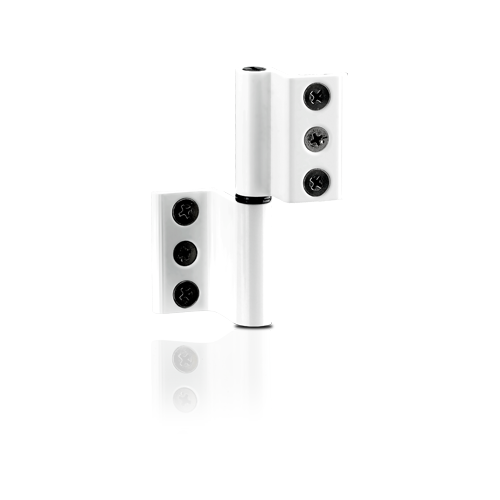

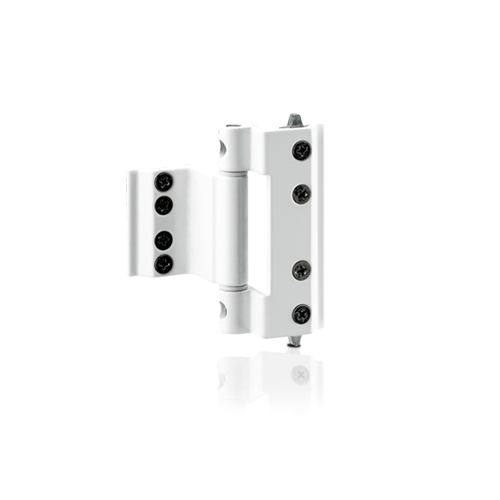

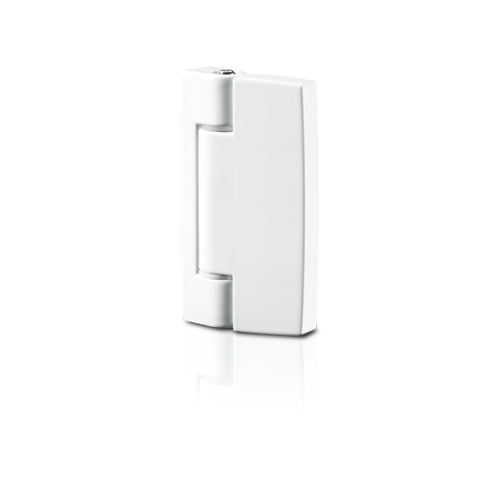

2D BUTT HINGE
Descriptions:
Vita's 2D aluminum butt hinge allows generous adjustment and features increased compression along with smooth operation.It also provides imporved pull-in and weatherseal for the window sash.
Built from high quality metal, it is designed to withstand heavy loading.
Features:
- Fully adjustable in 2 lateral directions
- Allows 90 degrees side way opening
- Compatible with major Euro grove aluminum profile
- Designed non-handed for ease of fabrication
- Made from quality die-cast zinc alloy
- Material: Pin (Stainless Steel)
Specifications:
| Model | Finishing | Steel Spindle | Detailed Specs | Packing | |
|---|---|---|---|---|---|
| Size (mm) | Length (mm) | ||||
| AWH 050/095/096 | Powder-Coating (WH,BK,BR) |
|
95 | Sash Max. Load:75 kgs (with 2 hinges) Hinge & Pin material: Aluminum |
20 pcs/box 5 boxes/carton *Screws included. |
| AFH 090/092 | 90 | Sash Max. Load:75 kgs (with 2 hinges) Hinge & Pin material: Aluminum |
20 pcs/box 5 boxes/carton *Screws included. |
||
| AFH 075 | 75 | Sash Max. Load:75 kgs (with 2 hinges) Hinge & Pin material: Zinc |
20 pcs/box 10 boxes/carton *Screws included. |
||
