HB 117

Descriptions:

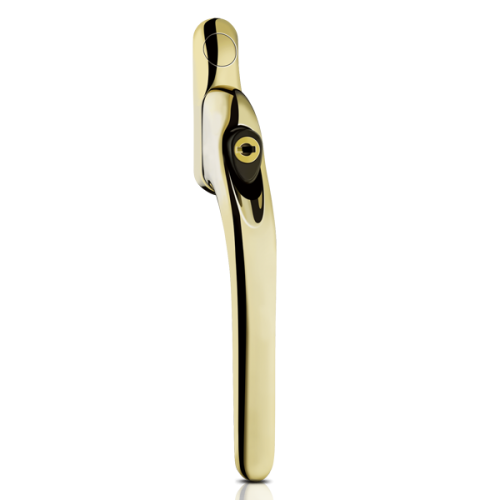

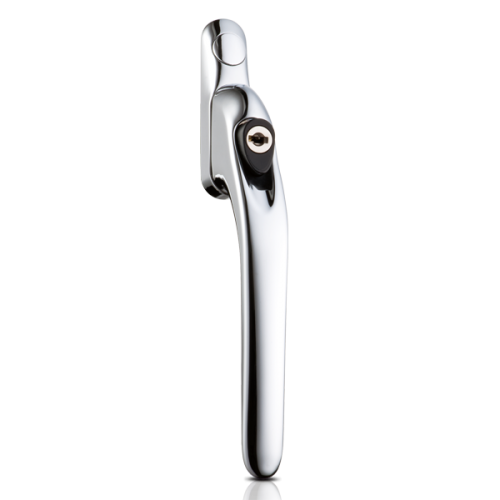

The inline windows handle is engineered to work with all standard espagonlette and shoot bolt mechanisms with 43mm centres.
Suitable for UPVC, Aluminium and Timber window profiles to create outstanding performance and durability.
Aimed at the prestigious end of the market, the Claymore inline window handle is produced to meet the demands associated with the new build and commercial sectors, while still retaining the aesthetical and contemporary design that appeals to the domestic and trade fabricator.

Features:

  • Tested in accordance to BBA
  • Six suited finishes
  • High profile to give greater knuckle clearance during operation
  • Non-handed for ease of stocking
  • Push-to-open locking mechanism
  • Available in locking or non-locking variants
  • Green button available for fire egress applications
  • Colour co-ordinated screw covers
  • Profile-specific spindle lengths
  • Packaged as 10 per box, 6 boxes per carton




Specifications:

Model Finishing Steel Spindle Detailed Specs Packing
Size (mm) Length (mm)
HB 101K
  • Electro-Coating (GD)
  • PVD (VG)
  • Electro-Polishing (PC,PB)
  • Powder-Coating (WH,BK,BR)
7
8
9
30
35
40
Zinc -
With key-lock


  20 pcs / box
  4 boxes / carton


HB 101
  • Powder-Coating (WH,BK,BR)
7
8
9
30
35
40
Aluminum-
Without key-lock
  20 pcs / box
  4 boxes / carton
