Descriptions:

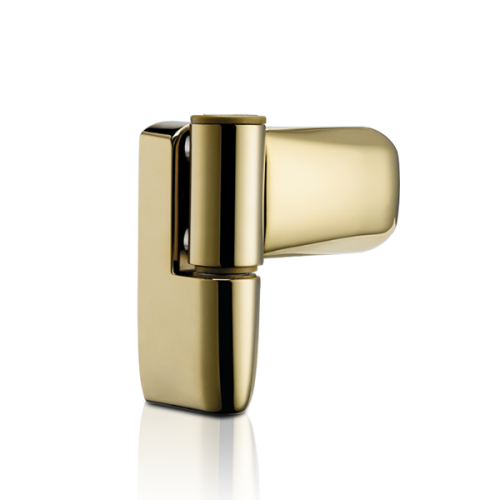

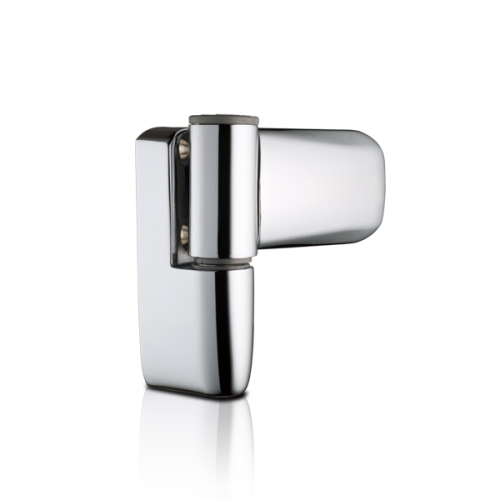

The Claymore 3D adjustable flag hinge was developed to facilitate the optimum fix to modern PVC-u door profiles.
This second generation hinge evolved from the original KFH range, retaining its strong characteristics with the added advantage of a soft sculptured shape that enhances the overall appearance of any door when fitted to modern ovulo decorative profiles.

Features:

• Full 3-D adjustability with a standard Allen key (Lateral Adjustment,±5mm,Height Adjustment +5mm, Compression Adjustment ±2mm)
• Sash Max. Load:100kg
• Covers sash rebates from 14mm to 23mm, without the use of plastic packers
• Standard frame parts: 16mm and 21mm
• Plastic shoe packer and additional flat packers available for a greater range of applications
